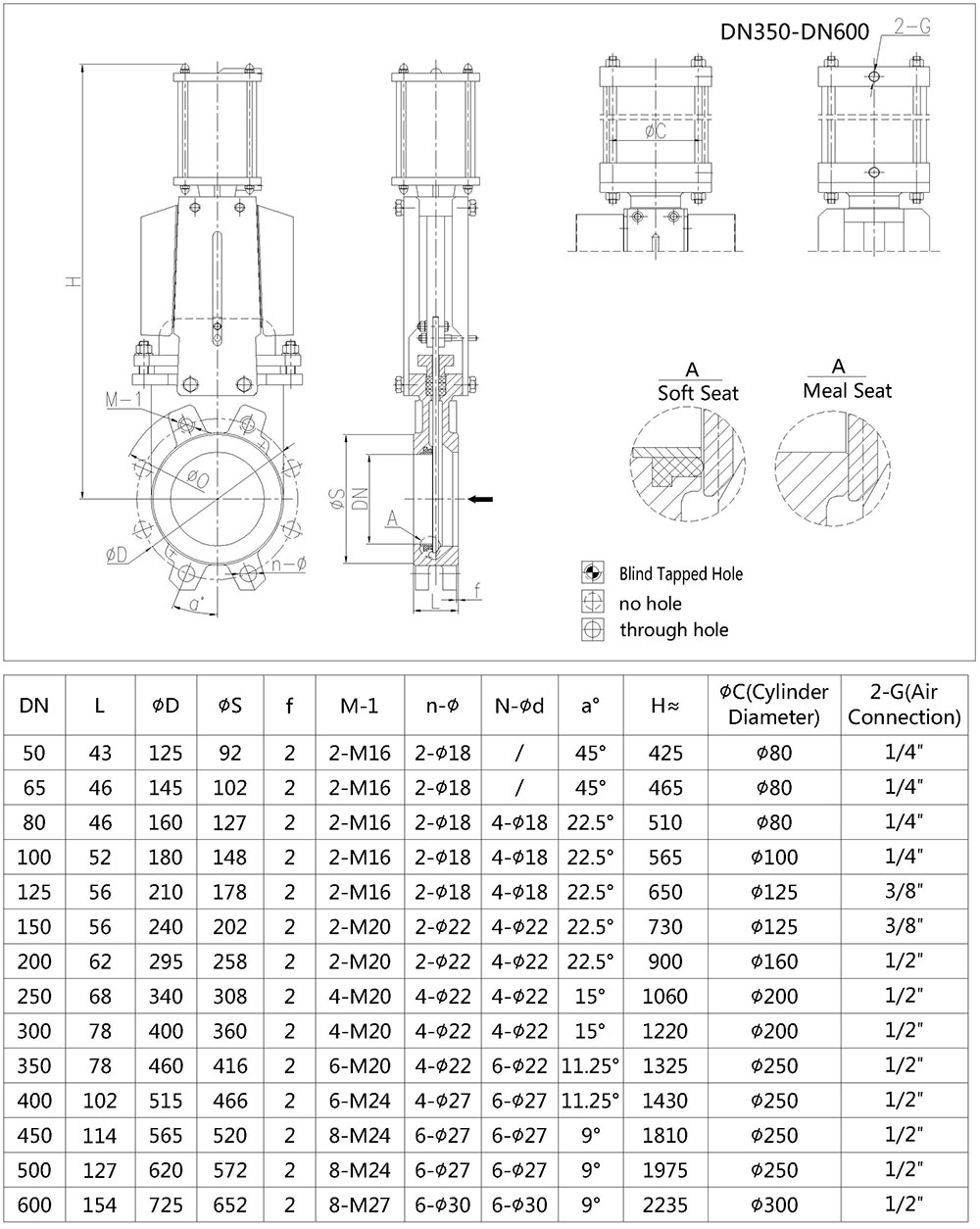

Pneumatic Rising Stem Uni-directional Knife Gate Valve

JZU knife gate valve is a one-way sealed knife gate valve, which can replace the rubber sealing ring. The sealing principle is mainly to achieve the sealing effect by the close connection between the gate and the rubber sealing ring. This series of knife gate valve is a kind of economic and effective high performance product, which can be equipped with pneumatic actuator to meet different industrial and mining requirements.

Model:JZU73X-10C

Sizes: DN50-1600

Body:WCB、CF8、CF8M、CF3、CF3M

Disc:SS304、SS316、SS316L、SS310、2205、F53、F55

Seat:EPDM，NBR、PTFE、Viton、Metal

Packing:PTFE, rubber, graphite, aramid fiber, high water-based packing

Operation: handwheel, bevel gear, electric, pneumatic, hydraulic, electro-hydraulic, lever, chainwheel

Working Pressure:

DN 50 - DN 250        10 kg

DN 300 - DN 400       6 kg

DN 450                      5 kg

DN 500 - DN 600       4 kg

DN 700 - DN 1200     2 kg

Flange connection:

PN10、PN16、ANSI B16.5 Class 150,、BS “D”&“E”

Applicable medium: water treatment, paper industry, power plant, chemical plant, food processing plant, mining etc.
